13 Spoofing Module-Spoof GPS/BeiDou/GLONASS & Galileo Navigation Satellite Signal
This module simulates real-time GPS, GLONASS, BDS, and Galileo signals to spoof drone navigation receivers. It enables precise position, velocity, and time manipulation for targeted diversion, hovering, forced landing, or takeoff prevention.Controlled via communication protocols or external buttons, it features one-click signal generation. Its compact, lightweight, and highly integrated design makes it ideal for handheld counter-drone systems. Perfect for petrochemical, power, law enforcement and security defense..
2. Main Functions
Ø It features all-round, round-the-clock drone defense capabilities.
Ø The system can be used to guide and deceive the UAV which is dependent on the navigation satellite positioning system, and realize the functions of driving away, course guidance, circular movement, forced landing, flight ban, crash, etc. With the help of the precision detection equipment, the system can realize the forced landing of the UAV at a designated point.
Ø It features a spoofing coordinate simulation function to replicate any latitude and longitude coordinates on the ground. It supports generating static and dynamic point trajectories to spoof the drones positioning to the simulated coordinates.
Ø It has the function of receiving navigation satellite signal and delay compensation, and can realize the time synchronization with the satellite in orbit. It can adjust the channel delay according to the deception distance to achieve the best deception effect.
Ø It has the functions of downloading, loading, automatic storage, automatic updating and automatic calculating of satellite ephemeris, which can obtain the ephemeris of navigation satellite in orbit and complete the signal simulation and transmission in the case of no signal reception.
Ø Includes device self-check and anomaly reporting features.
Ø Provide standard interfaces and protocols to support user secondary development and integration.
Ø Support navigation satellite frequency point and function customization development.
3. Technical Index
Supports spoofing of L band navigation satellite signal systems and frequencies, as well as suppression interference in S-band, including BDS, GPS, GLONASS, Galileo, QZSS, and Navic.
Table 3-1 Configuration List of Signal Frequency Points for Navigation Signal Source Module
|
No.
|
Navigation Band
|
Center Frequency (MHz)
|
Channel Bandwidth (MHz)
|
|
1
|
BDS B1I
|
1561.098
|
4.092
|
|
2
|
BDS B2I
|
1207.14
|
4.092
|
|
3
|
BDS B2a
|
1176.45
|
20.46
|
|
4
|
BDS B3I
|
1268.52
|
20.46
|
|
5
|
BDS B1C
|
1575.42
|
32.736
|
|
6
|
GPS L1 C/A
|
1575.42
|
2.046
|
|
7
|
GPS L2 C/A
|
1227.6
|
2.046
|
|
8
|
GPS L5
|
1176.45
|
20.46
|
|
9
|
GLONASS G1
|
1602
|
8.3345
|
|
10
|
GLONASS G2
|
1246
|
6.7095
|
|
11
|
Galileo E1
|
1575.42
|
14.322
|
|
12
|
Galileo E5a
|
1176.45
|
20.46
|
|
13
|
Galileo E6
|
1278.75
|
10.23
|
4. Supports effective navigation deception for multiple drones, including those from Autel and DJI.
Table 4-1List of typical drones that are effective at deceiving
| Serial Number |
Drone brand |
Drone Model |
| 1 |
Autel |
Autel 4T |
| 2 |
Autel V3 |
| 3 |
AutelLite |
| 4 |
DJI |
Mavic 4 Pro,Mavic 3 Pro,Mavic 2 Pro etc. |
| 5 |
Air3,Air2s,Air2 etc. |
| 6 |
Mini4P,Mini3,Minise etc. |

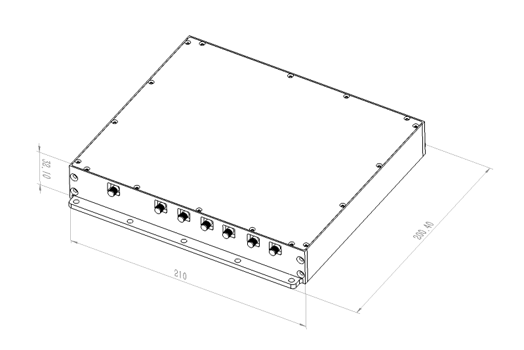

5. Schematic diagram of product interface
6. Standard Package Contents
|
No.
|
Name
|
Qty
|
Specification
|
Remarks
|
|
Hardware
|
|
1
|
Navigation Signal Source Module Pro6
|
1
|
SS02C6
|
|
|
2
|
Accessories
|
1
|
Power connector, heatsink
|
|
|
3
|
Packing box
|
1
|
|
|
|
4
|
2-in-1 combiner
|
1
|
PD2S1-0.8-2.7
|
Optional
|
|
5
|
4-in-1 combiner
|
1
|
PD4S1-0.8-2.7
|
Optional
|
|
6
|
Navigation signal receiving antenna
|
1
|
RXATN-MASH01
|
Optional
|
|
7
|
1.5 GHz navigation signal transmitting antenna
|
1
|
TXATN-BLG-20
|
Optional
|
|
8
|
1.2 GHz navigation signal transmitting antenna
|
1
|
TXATN-BLG-1.2G
|
Optional
|
|
Software
|
|
9
|
Host PC software
|
1
|
|
|
|
Documentation
|
|
10
|
User manual
|
1
|
Electronic version
|
|
|
11
|
Communication protocol
|
1
|
Electronic version
|
|
|
12
|
Factory test report
|
1
|
Paper copy
|
|
|
13
|
Certificate of Conformity
|
1
|
Paper copy
|
|
